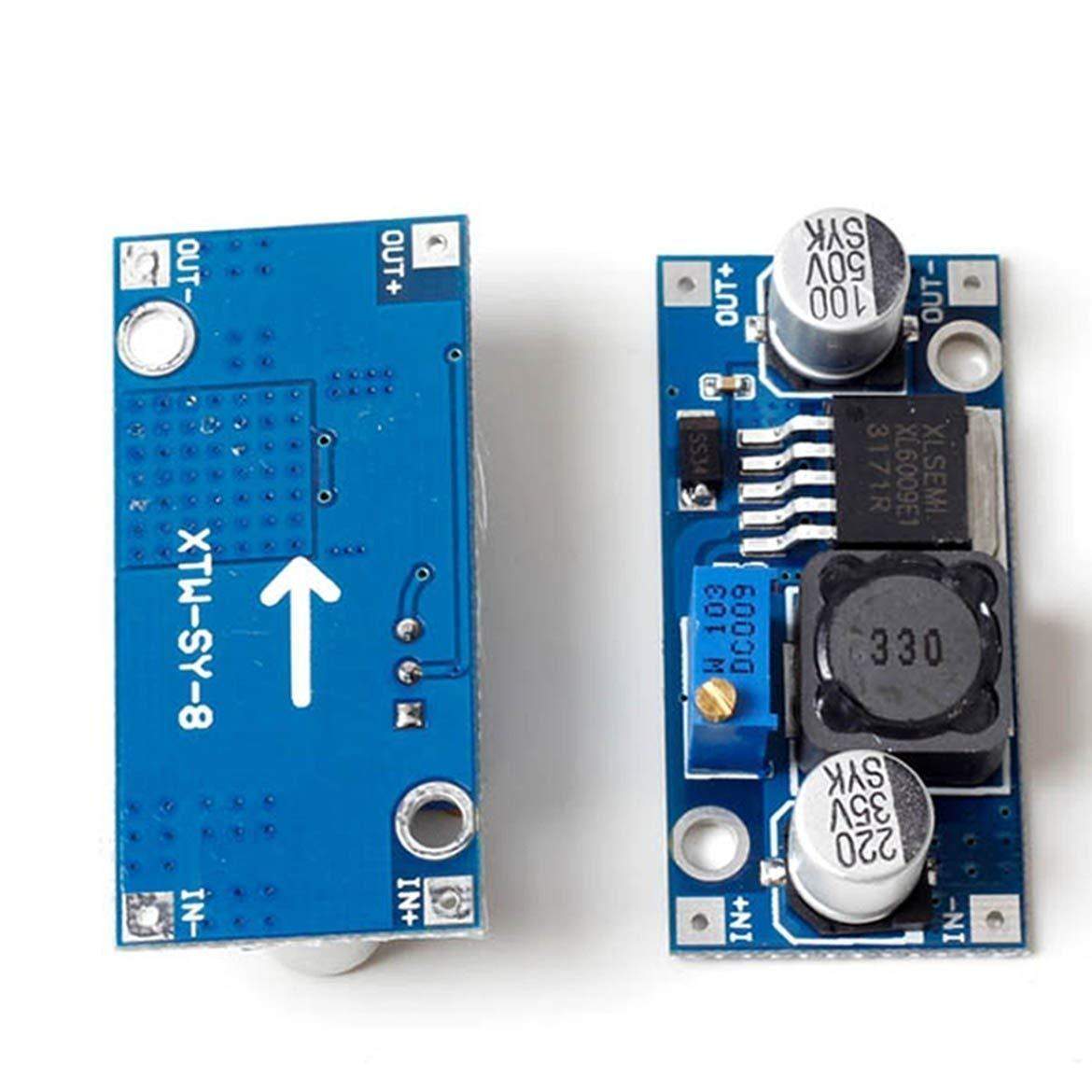

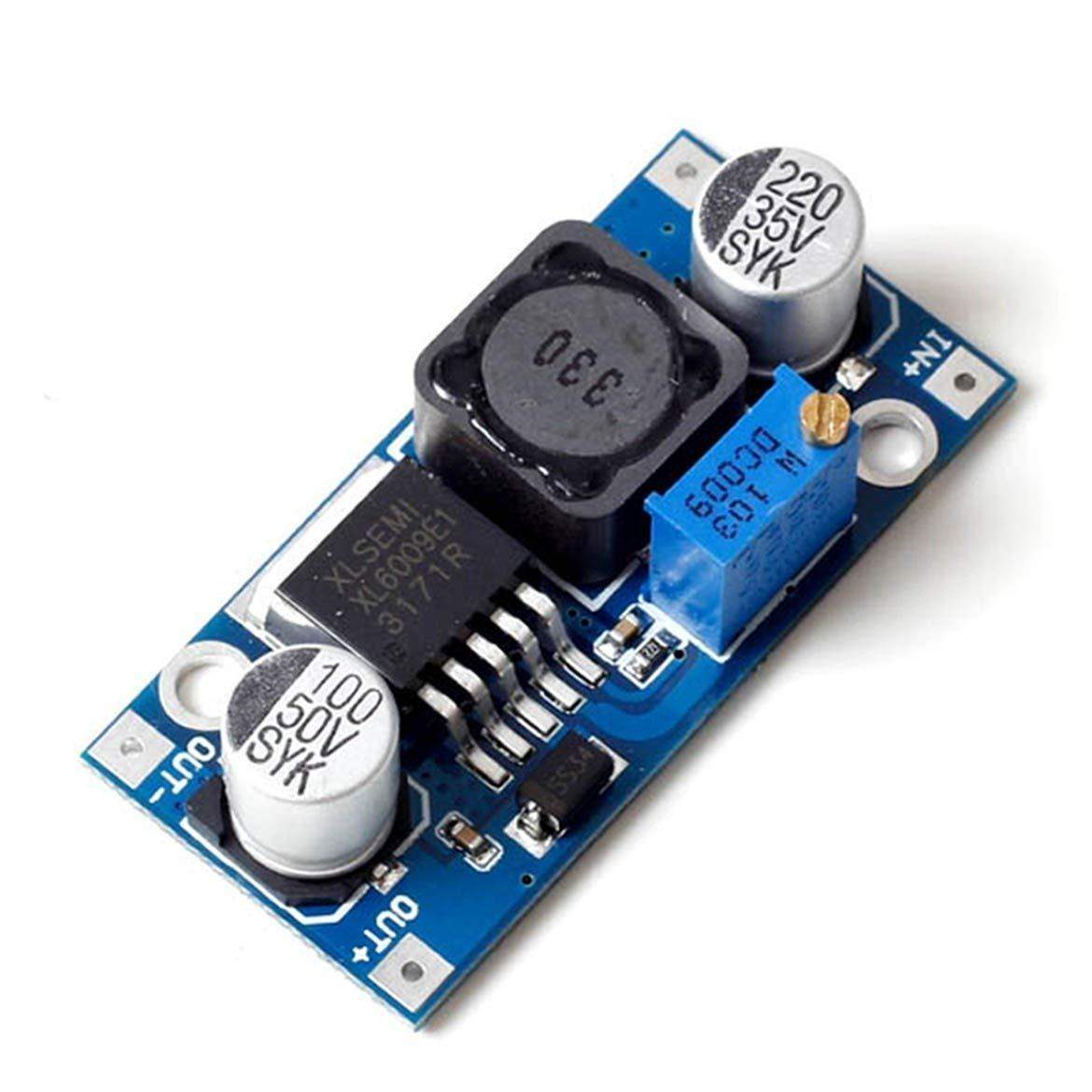

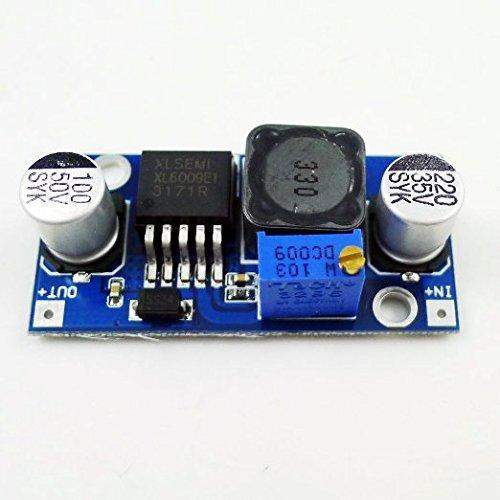

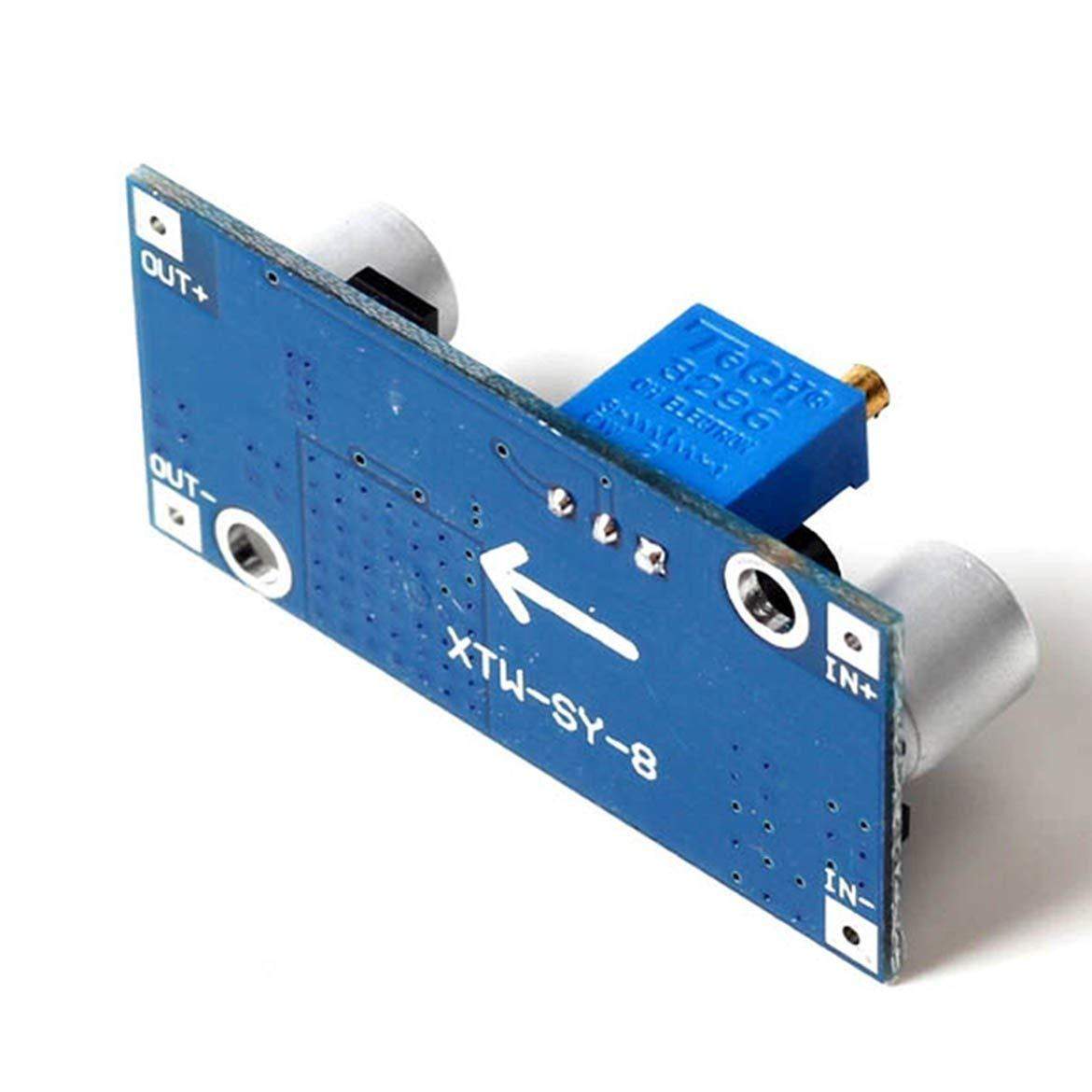

Voltage Adjustable Step up Module XL6009 DC-DC Boost Converter

₨300.00

  • Module Properties: non-isolated step-down (BUCK)switching regulator
  • Input voltage:DC 3.0 – 35V
  • Output Voltage:Adjustable1.5 – 35VDC(Input must 1.5Vgreater than output)
  • Output Current:Rated 2A, max. 3A (AdditionalHeat sink required)
  • Conversion efficiency: Up to 92% (Output voltage higher, the higher the efficiency)
  • Minimum dropdown voltage:1.5V
  • Voltage regulation: 0.5%
  • Dynamic response speed: 5% 200uS
  • Switching Frequency: 150KHz
  • Circuit protection: SS36
  • Operating temperature: Industrial grade (-40 to +85?C) (output power 10W or less)
  • Load regulation: 0.5%
  • Size: 50mm x 23 mm x 14mm

Out of stock

SKU: Electronic Circuit ----11 Categories: ,

Description

  • Module Properties: non-isolated step-down (BUCK)switching regulator
  • Input voltage:DC 3.0 – 35V
  • Output Voltage:Adjustable1.5 – 35VDC(Input must 1.5Vgreater than output)
  • Output Current:Rated 2A, max. 3A (AdditionalHeat sink required)
  • Conversion efficiency: Up to 92% (Output voltage higher, the higher the efficiency)
  • Minimum dropdown voltage:1.5V
  • Voltage regulation: 0.5%
  • Dynamic response speed: 5% 200uS
  • Switching Frequency: 150KHz
  • Circuit protection: SS36
  • Operating temperature: Industrial grade (-40 to +85?C) (output power 10W or less)
  • Load regulation: 0.5%
  • Size: 50mm x 23 mm x 14mm

Additional information

Weight 0.1 kg
Dimensions 1 × 1 × 1 cm
